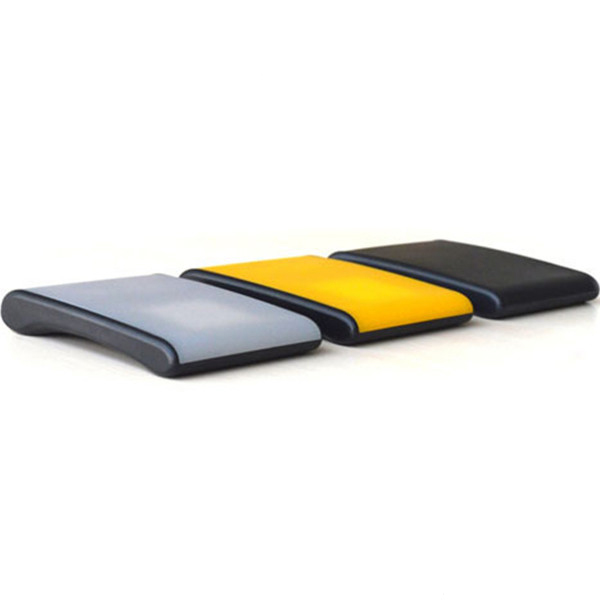

Desktop USB UHF RFID Reader Writer

Features

  • Phychip Pr9200 Chip

  • USB Interface

  • Up to 50 cm distance

  • 50 tags/s

  • EPC global UHF Class 1 Gen 2

  • Tag RSSI Supported

Applications

  • Warehouse Management

  • Garment Management

  • Personal Tracking

  • Retail Management

  • Healthcare Management

  • Fleet Management

Specifications

Parameters

Input Voltage DC 3.5V – 5 V
Standby Mode Current <80mA
Operating Current 180mA @ 3.5V (26 dBm Output,25°C)

110mA @ 3.5V (18 dBm Output,25°C)

Starting Time <100mS
Operating Temperature – 20 °C  –  + 70  °C
Storage Temperature – 20 °C  –  + 85  °C
Operating Humidity < 95% ( + 25 °C)
Air Interface Protocol EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C
Spectrum Range 902Mhz – 928Mhz

865MHz – 868MHz(Optional)

Supported Regions US, Canada and other regions following U.S. FCC

Europe and other regions following ETSI EN 302 208

Mainland China

Japan

Korea

Malaysia

Taiwan

Output Power 18-26 dBm
Output Power Precision +/- 1dB
Output Power Flatness +/- 0.2dB
Receive Sensitivity < -70dBm
Peak Inventory Speed > 50 pcs/s
Tag Buffer Size 200 pcs @ 96 bit EPC
Tag RSSI Supported
Host Communication USB 2.0

RS-232

Wiegand 26

Wiegand 34

Baud Rate 115200 bps (The default andrecommended)

38400bps

Key Features

  • USB UHF RFID Reader with PHY Chips PR9200 inside with outstanding performance and cost-effective.
  • Chip: FT232 USB to UART, providing the most stable USB communication in the industry.
  • All components with high-end materials and low temperature drift coefficient ensure stable performance in harsh environment.
  • Two models: D-100/101.
  • Read distance: 80cm-2m (D-100), 10cm-50cm (D-101).
    Note: Tested with Impinj E41b inlay
  • Host communication: USB 2.0/ RS-232/ Wiegand 26/ Wiegand 34
  • Read rate: >50PCS per second.
  • Super low power consumption; no additional cooling devices required under indoor use.
  • Power supply: USB or independent power supply.
  • Full compatible with different communication interfaces of HUAYUAN INDY R2000 series products.
