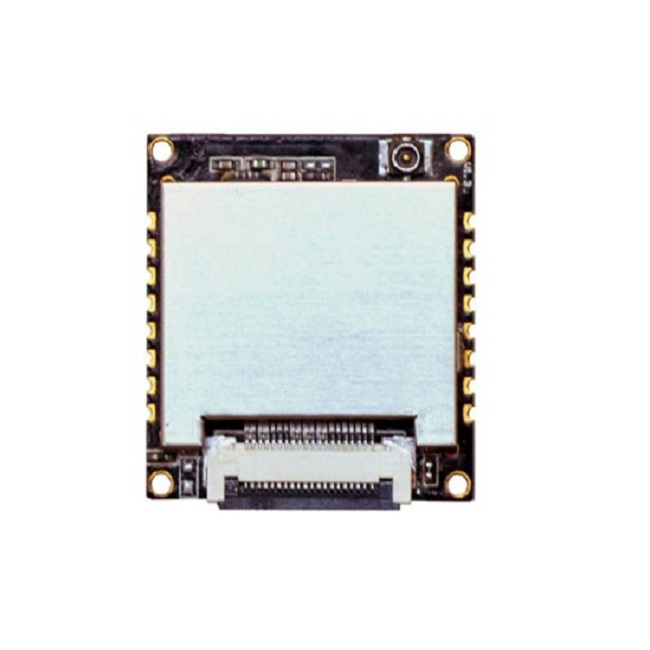

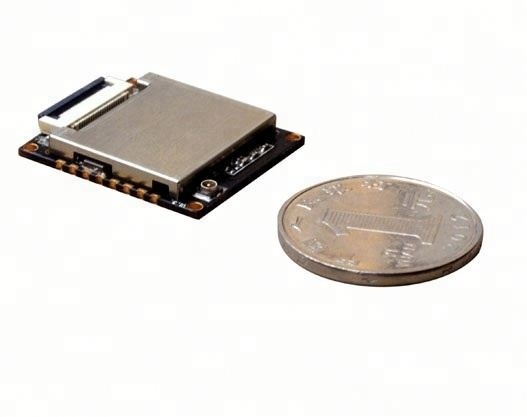

Phychip Pr9200 UHF RFID Module

Features

  • Phychip Pr9200 Chip

  • Compact size

  • 50 tags/s

  • Low Power

  • EPC global UHF Class 1 Gen 2

  • Tag RSSI Supported

Applications

  • Warehouse Management

  • Garment Management

  • Personal Tracking

  • Retail Management

  • Healthcare Management

  • Fleet Management

Specifications

Parameters

Input Voltage  DC 3.5V – 5V
Standby Mode Current  <80mA (EN High Level)
Sleep Current  <100uA (EN Low Level)
Operating Current  180mA @ 3.5V (26 dBm Output,25°C)

110mA @ 3.5V (18 dBm Output,25°C)

Starting Time  <80mS
Operating Temperature  – 20 °C  –  + 70  °C
Storage Temperature  – 20 °C  –  + 85  °C
Operating Humidity  < 95% ( + 25 °C)
Air Interface Protocol  EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C
Spectrum Range  902Mhz – 928Mhz

865MHz – 868MHz(Optional)

Supported Regions  US, Canada and other regions following U.S. FCC

Europe and other regions following ETSI EN 302 208

Mainland China

Japan

Korea

Malaysia

Taiwan

Output Power  18-26 dBm
Output Power Precision  +/- 1dB
Output Power Flatness  +/- 0.2dB
RF connector  I-PEX
Receive Sensitivity  < -70dBm
Peak Inventory Speed  >50 pcs/s
Tag Buffer Size  200pcs @ 96 bit EPC
Tag RSSI  Supported
Host Communication TTL Uart port

Wiegand 26
Wiegand 34

GPIO  2input 2 output (3.3V TTL Level)
Baud Rate  115200 bps (Defaultand Recommended)
38400 bps
Cooling  Air cooling (Don’t need externalHeatsink)
